Some machines arrive dusty. Some arrive tired. These are the others: bent, abandoned, seized, corroded, discarded and nearly lost. Back From Scrap documents the machines that looked beyond saving, and the work required to put history back in motion.
A 105 year old brass-blade Robbins & Myers fan pulled from a scrap yard in severe condition. Before a screw is turned, the machine is documented exactly as found. The damage, missing pieces, original finishes and surviving hardware all become part of the restoration plan.
Pulled directly from a scrap metal heap, buried under decades of debris. Cast iron coated in grime and oxidation, four solid 16-inch brass blades tarnished black and knocked out of true, head wire turned to chalk, and bearings locked tight. In 1921, this 22-pound industrial workhorse retailed for $35—the modern equivalent of over $500, or nearly half a month’s wages for the average worker. To see a machine engineered for a century of service destined for the crusher is why we do this!
Recovered Source: Scrap Yard
Condition: Severe
Status: Rescue Open
A running record of what this machine reveals as it comes apart. Findings are recorded before cleaning or correction so the restoration tells the truth about what was actually found.
Fan documented in as-found condition before intervention. Heavy oxidation and grime cover the cast-iron body, the guard is severely distorted, the four brass blades are heavily tarnished and out of true, and the electrical system is incomplete and unsafe for power.
BENCH NOTE: No power applied. Preserve first, diagnose second.
As Recovered

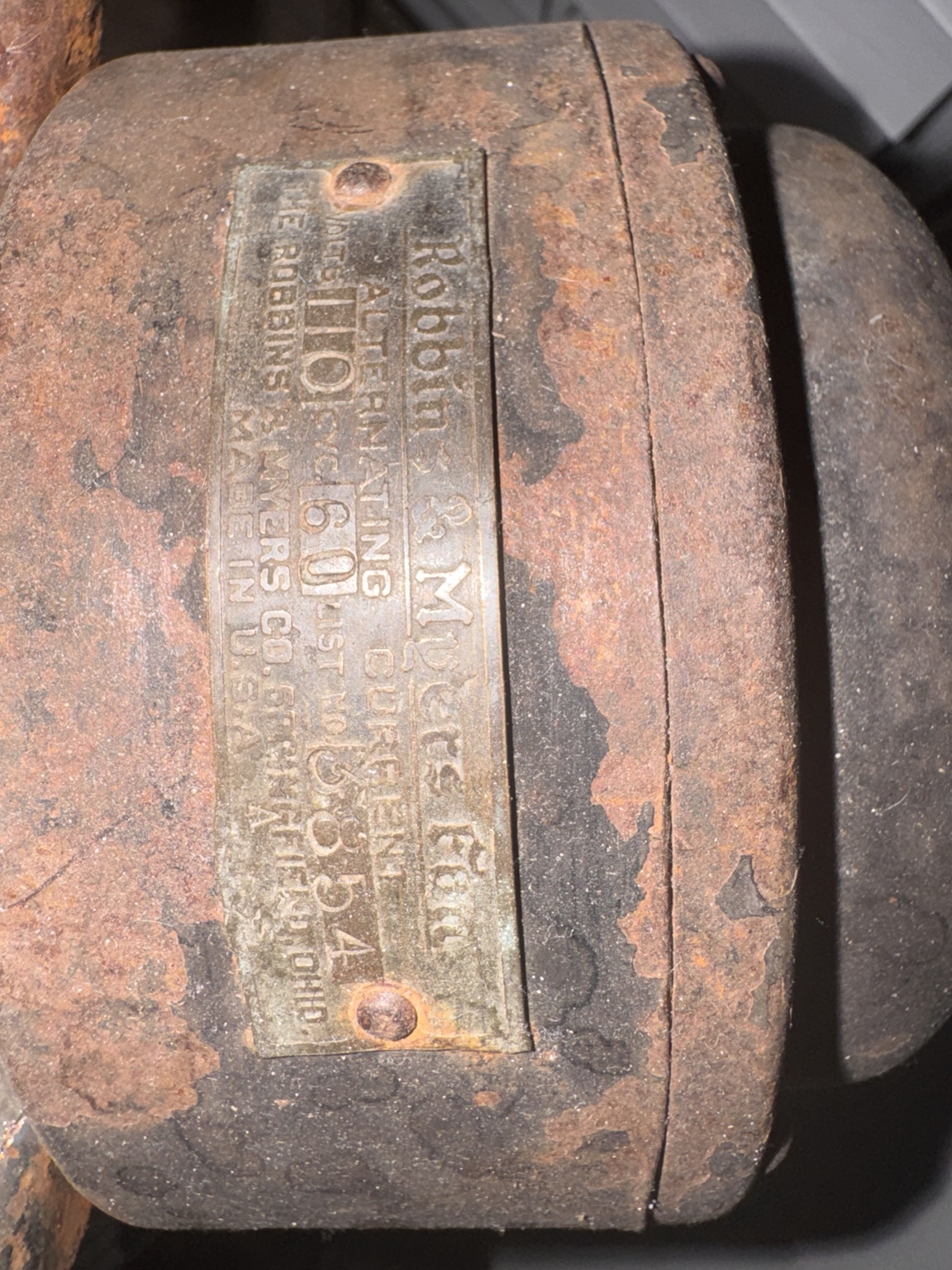

Badge, cage, blade assembly, motor housing, base, switch area, oscillator and surviving hardware are photographed and cataloged. Missing pieces, original finishes and evidence of previous work will be noted before parts are cleaned.
FINDING: Mechanical and electrical condition remain unverified until controlled disassembly and testing.
Initial Survey

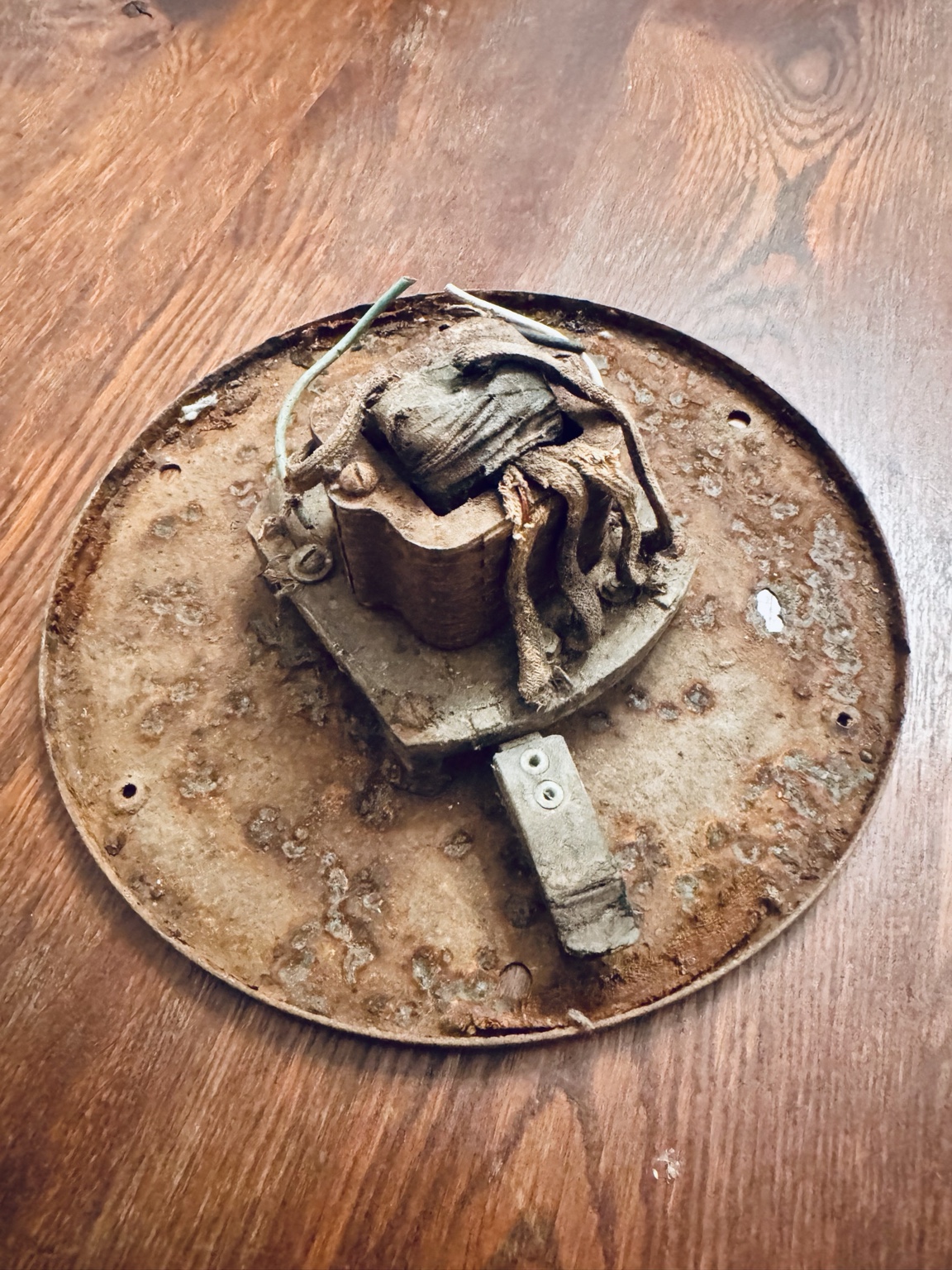

The underside exposes the surviving switch components and deteriorated cloth-covered conductors. Wiring condition will be documented lead by lead before anything is removed, with the original routing retained as a reference for reconstruction.
BENCH NOTE: Existing insulation is visibly deteriorated. Circuit identification and continuity checks come before replacement.
Base / Electrical
Pending. The next entry will record stator condition, winding resistance, insulation findings, bearing and shaft condition, oscillator inspection, and the repair decisions that follow.
STATUS: Awaiting teardown.
Motor / Diagnosis
The point is not to make an old machine look newly manufactured. The point is to discover what survived, repair what failed, and let the finished fan still look like it has lived a life.
Photograph the fan exactly as recovered: badge, blade hub, cage, switch, oscillator, wiring, hardware and every clue to its original construction.
Free seized parts carefully, remove destructive contamination and determine which components can be preserved before disassembly goes any further.
Evaluate windings, insulation, switch, head wire, bearings, shaft and oscillator. Correct faults using the least invasive repair that returns safe function.
Reassemble, lubricate, balance, verify current draw and operating temperature, then perform an extended run before declaring the machine back in service.
The archive will grow one impossible-looking machine at a time. Each rescue gets its own condition record, repair story and before/after documentation.
Brass-blade Robbins & Myers fan recovered from a scrap yard in severe condition. Full documentation and evaluation underway.
“Not every old fan needs to look new. Some just need someone to believe there is still a machine under the rust.”Antique Fan Repair • Back From Scrap
Send clear photographs of the fan, motor tag, cage, blade, base and damaged areas. Severe condition does not automatically mean the machine is finished.
